RUFFLED & HERRINGBONE FOLDED FINS

Standard Wave Configurations
for the Flow Path
(No Tooling Charge)

Ruffled
Wave Pitch = 0.375"
Amplitude = 0.050"
Radius = 0.185"

Lazy Ruffled
Wave Pitch = 1.000"
Amplitude = 0.050"
Radius = 1.262"

Herringbone
Wave Pitch = 0.500"
Amplitude = 0.075"
Radius = 0.020"

Materials Used
Aluminum, Copper, Stainless Steel, Inconel, Others upon request

RUFFLED & HERRINGBONE FIN EXAMPLES

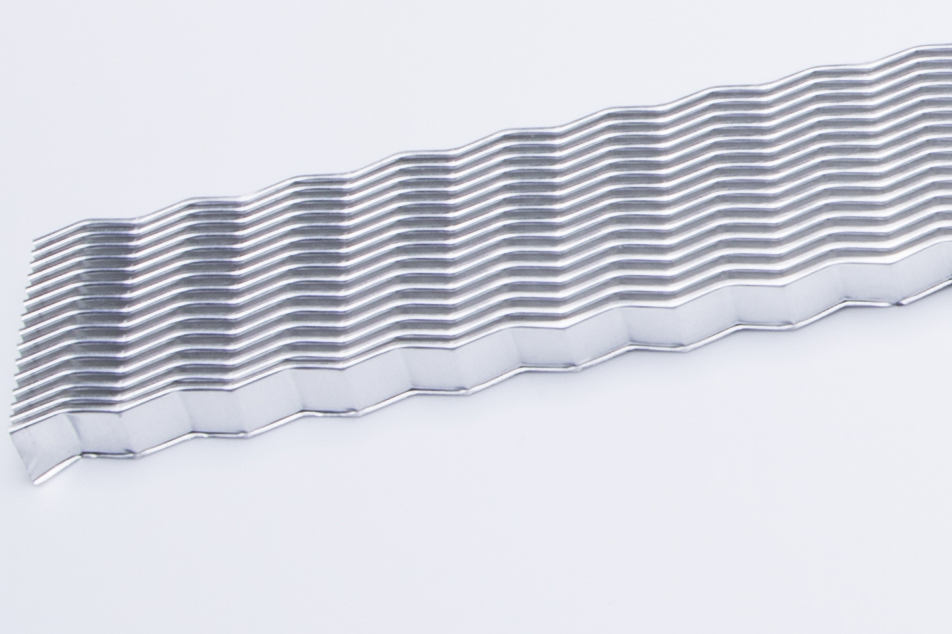

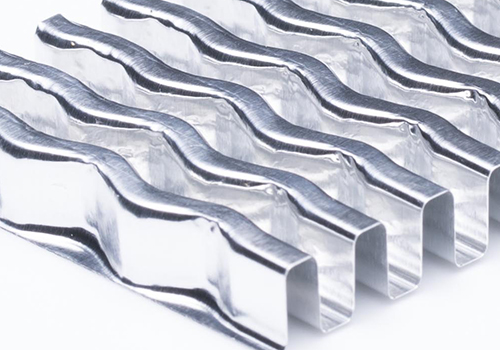

Herringbone Aluminum
Lazy Ruffled Radial Copper
Lazy Ruffled Nickel

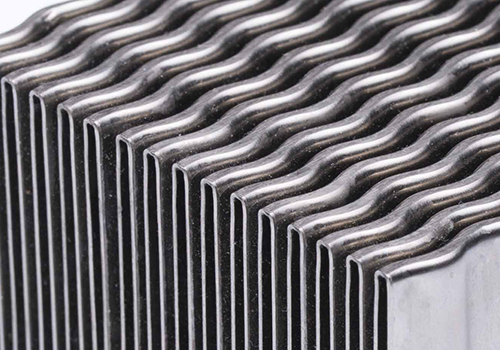

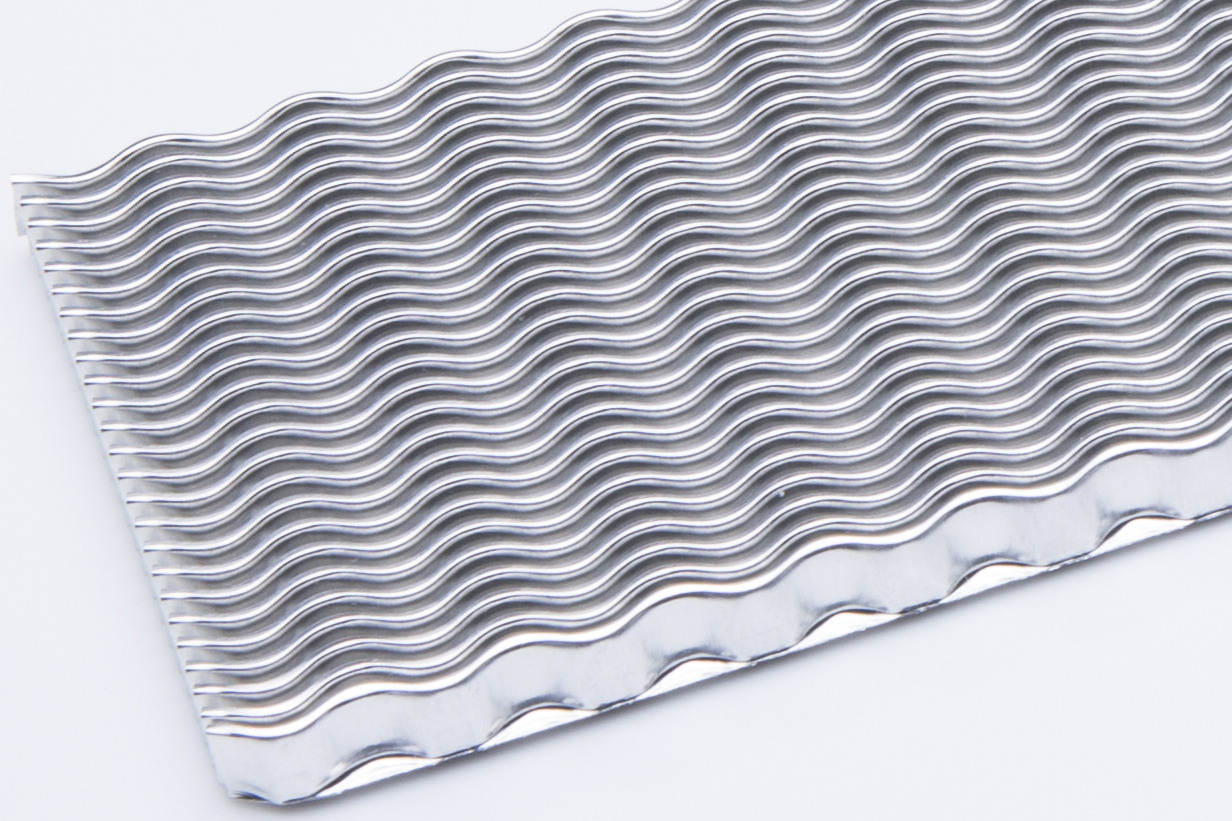

Ruffled Aluminum

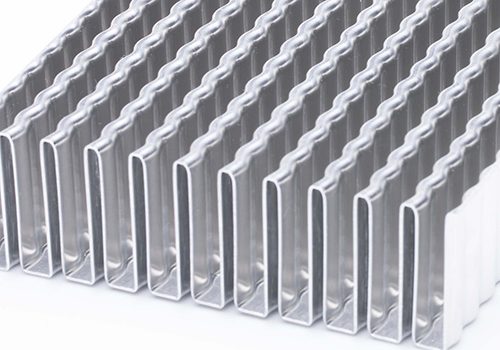

Ruffled Radial Aluminum

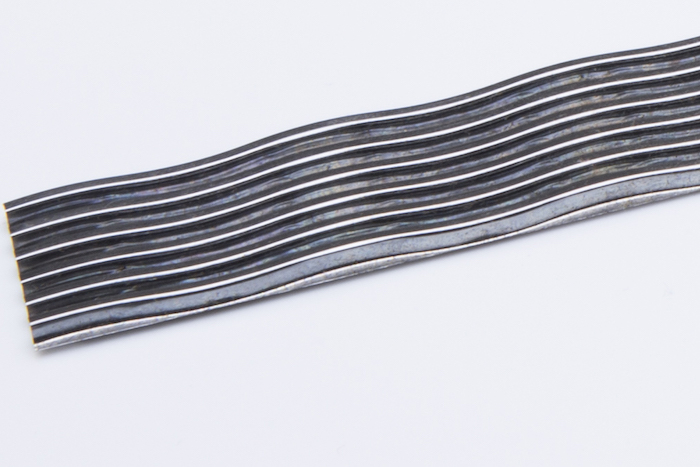

Ruffled Nickel
Ruffled Aluminum

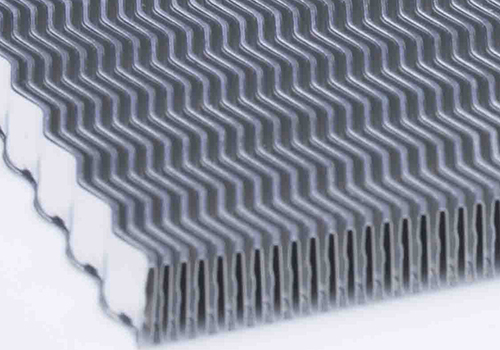

Herringbone Aluminum

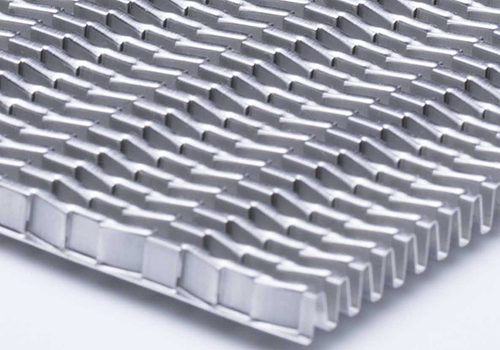

Ruffled Lance Aluminium
Herringbone Aluminum
Ruffled Titanium

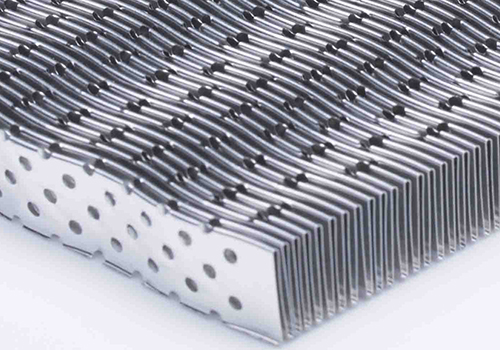

Lazy Ruffled Perforated Aluminum

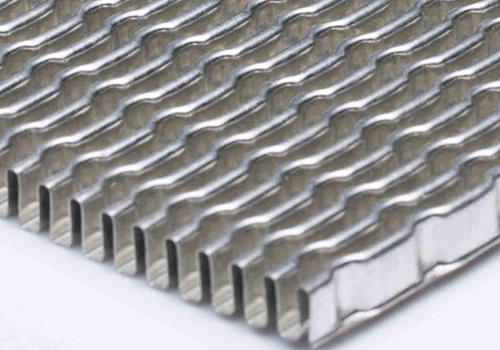

Radial Bump Tin Coated Copper

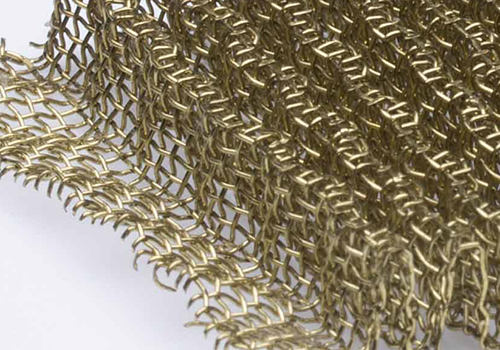

Ruffled Woven Brass Wire
